Stone Coated Roof Tile Machine with Slitting Line

  • Stone Coated Roof Tile Machine with Slitting Line
  • Stone Coated Roof Tile Machine with Slitting Line
  • Stone Coated Roof Tile Machine with Slitting Line
  • Stone Coated Roof Tile Machine with Slitting Line

Stone Coated Roof Tile Machine with Slitting Line

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days
    Packaging: as customer requirem
    Productivity: 600 pieces an hour
    Brand: ZHONGTUO
    Transportation: Ocean,Land,as customer requirem
    Place of Origin: China
    Supply Ability: 5 set/3 month
    Certificate: CE, ISO9001

Basic Info

Model No.: ZT-005-70

Product Description

Stone Chip Coated Roof Tile Machine with Slitting Line

Stone chip coated roof tile machine also named stone coated machine or stone coated roof machine.Stone chip coated roof tile is a modern environmentally friendly roofing material .Covering color vermiculite surface which carried under the high temperature.

Stone chip coated roof tile is formed by 0.4mm Al-Zn plating panel and color stones. It is modern,environmental and nice appearance. stone coated roof is a new advanced roof material which adopt the high and new technology,use the non-corrosibility Al-Zin steel as the basic plate,use the acrylic resin which has the good weather resistance as the adhesives,use the colorful natural sandy gravel as the surface.Because of its nice appearance,lightweight,durable and environmental,it is becoming the major product in the international roof materials in recent years, and it is also used in the high-grade building in domestic,it is enjoying a great popularity all over the world.


Stone Chip Coated Roof Tile Machine with Slitting Line

A sample profile drawing:

Steel Stone Roofing Tiles Making Machine

the type of rool tile we can do:

Shingle type for Steel Stone Roofing Tiles Making Machine

Classic type for Steel Stone Roofing Tiles Making Machine

Roman type for Steel Stone Roofing Tiles Making Machine

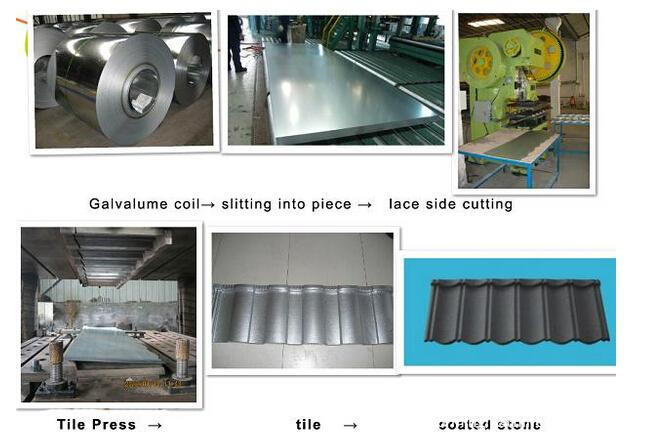

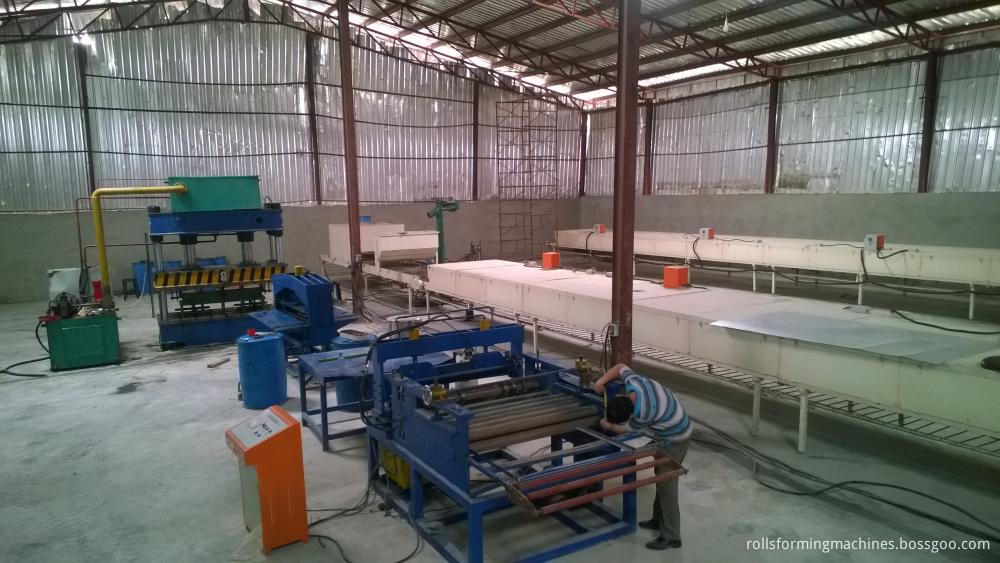

Component and production process of Stone chip Coated Roof Tile machine

Decoile ---slitting and cutting part--- 200T Press profile machine---Lace shearing machine---Stone coated machine(Auto bottom glue spraying section---Auto stone coated section---The first time drying section---Auto face glue spraying section---The second time drying section---Mixer of sand)

Stone Chip Coated Roof Tile Machine with Slitting Line



The main parameters of Stone chip Coated Roof Tile machine:

Main raw material : 0.4mm aluminum plate,or as customer requirement.

Normal feeder width:914mm (change by profile)

Material of mold: D2/GCr12MoVo

Slitting speed:10m/min

Total power: 250kw

Productivity: 3-6m/min Calculate as 1.2m per piece, eight hours,

produce 1500pcs every day

Machine weight: 35T

Production condition: need plant area 2000 square meter(25m*80m)

Container need: two 40 GP and one 40 HQ

Detailed information of Stone chip Coated Roof Tile machine:

1.slitting and cutting line

Shaft material: 45# steel,

outer diameter 85mm

Number of shaft:1 step of feeding, up: 5 pieces, down: 6pieces

Gear transport

Forming speed :10m/min

Main motor power:3kw

Mini slitting width:150mm

Max slitting quantity:6 Pieces

Width tolerance: ±1mm

Slitting Speed 10 m/min

Slitter distance can be adjusted

Slitter material: 9CrSi

the slitting and cutting can work separately.

Stone Chip Coated Roof Tile Machine with Slitting Line


Stone Chip Coated Roof Tile Machine with Slitting Line

Auto bottom glue spraying section for stone coated machine

Outside Dimension:800*1350*850mm(L*W*H)

structure:Channel steel ,welded Transmission:2.2 kw Variable-frequency

adjustable-speed motor 0-32R/Min

Conveying device: Reciprocating chain conveys

Automatic glue spraying assembly with motor:0.06kw

Adsorption of dust removalequipment:1 set

Air compressor:1 set 0.09m³

Airless spray glue pump:1 set

Automatic glue spraying gun: 1 piece

Fill glue gun: 1 piece

5.Auto stone coated section stone coated machine

Outside Dimension :3000*1850*700mm(L*W*H) Structure:Channel steel ,angle steel ,welded

Transmission:With glue spraying equipment compound chain transmit

Conveying device:Compound chain transmit

Automatic sand hopper:1 set(dimension 550*600*500mm)

Automatic rising machine:1 set(Rising height:1.9m Power:300kg/h)

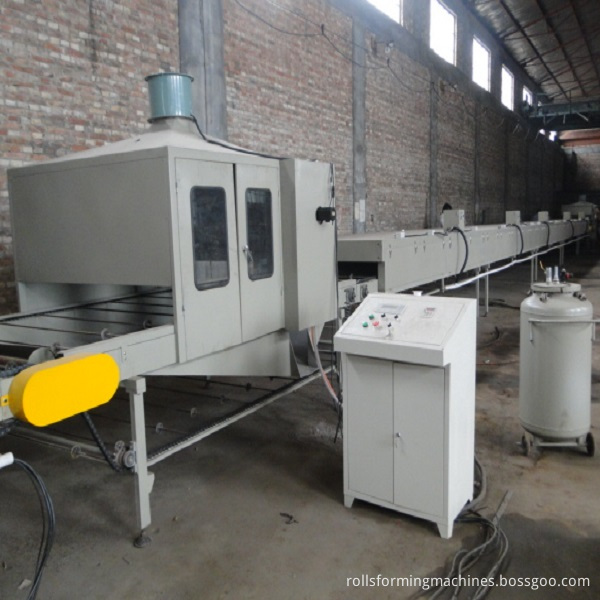

6.drying section for stone coated roof machine

Outside Dimension :25000*800*1200mm(L*W*H)

Structure:carbon steel welded Frame type heat preservation wall:fill up with heat preservation material which is bended with 1mm carbon steel

Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

Infrared fluorescent tube:50 pcs

Conveying device: Reciprocating chain conveys

Cool device:1 set

Stone Chip Coated Roof Tile Machine with Slitting Line


Stone Chip Coated Roof Tile Machine with Slitting Line

The video of Steel Stone Roofing Tiles Making Machine

1. roof tile making mchine:

2. stone coated machine
